The screen of the virtual CD emulator consists of the following six parts.

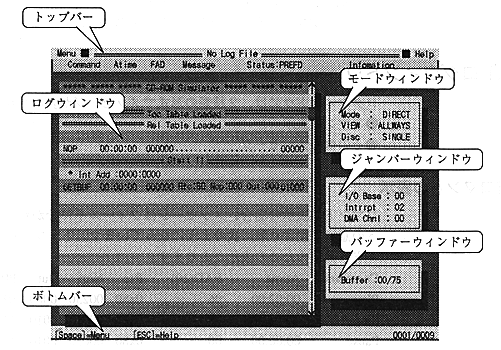

Figure-4. Screen display example of virtual CD emulator
● Top bar
There are two pull-down menus on the top bar, "Menu" and "Help" ("Help" is not implemented). The log information file name specified when the virtual CD emulator is started is displayed in the center. If you do not specify a log information file, "No Log File" is displayed. Below that is a bar that shows where to display the information in the log window. This bar is usually purple, but turns yellow when in LogView mode.
● Bottom bar
In the right corner, you can see the number of rows of log information you are currently viewing relative to the total number of log information.
● Log window
A blue and light blue color-coded window in the center of the screen. There is a scroll bar on the right side that shows the position of the currently displayed log information with respect to the total number of log information.
● Mode window
The window at the top of the three on the right side of the screen. The following three modes are displayed.
Virtual CD emulator mode Direct .......... Direct DOS file access Realtime ..... real-time emulation
Screen display mode Always ..... Mode to display all log information Error .......... Mode to display only error information (not implemented) Logview ..... Mode to view log information
CD speed Single ......... Standard Double ........ Double speed
● Jumper window
The window in the center of the three on the right side of the screen. Displays the jumper setting position.
● Buffer window
The window at the bottom of the three on the right side of the screen. Shows the number of buffers currently in use for the buffers prepared in the program.
