PCM / ADPCM playback library

6.2 Function details

Initialization and termination processing

List Title Function specifications Function Initialize Function Name PCM_Init No 1.1
Form: Bool PCM_Init (void)
input: none
output: none
Function value: If it can be initialized successfully: TRUE
If it cannot be initialized normally: FALSE
function: Immediately after starting the program, it will be initialized to use this library.
remarks: When using this library, be sure to call this function at the beginning of the program.

List Title Function specifications Function End processing Function Name PCM_Finish No 1.2
Form: void PCM_Finish (void)
input: none
output: none
Function value: none
function: Terminates the PCM library.
remarks: If you do not want to play PCM after that, call this function.

List Title Function specifications Function Declaration of use of ADPCM Function Name PCM_DeclareUseAdpcm No 1.3 1.3
Form: void PCM_DeclareUseAdpcm (void)
input: none
output: none
Function value: none
function: The function is expanded so that ADPCM can be played.
remarks: Required when playing the specified ADPCM format or CD-ROM XA Audio format. Call it immediately after the initialization function PCM_Init.
If you call this, the modules in the ADPCM decompression library will be linked.
Calling does not limit playback functions other than ADPCM.
If you do not call it, the executable file size will be slightly smaller.

List Title Function specifications Function Saturn PCM usage declaration (file system) Function Name PCM_DeclareUseSapGfs No 1.4
Form: void PCM_DeclareUseSapGfs (void)
input: none
output: none
Function value: none
function: Extends the function so that it can be played back in Saturn PCM format.
Saturn Calls when using the PCM format in file playback mode (file system).
remarks: Required when playing Saturn PCM format in file playback mode.
Call it immediately after the initialization function PCM_Init.
By calling this function, all PCM files to be played will be in Saturn PCM format.
SaturnPCM format, AIFF format, specified ADPCM format, and CD-ROM XA Audio format files cannot be used at the same time.

List Title Function specifications Function Saturn PCM usage declaration (stream system) Function Name PCM_DeclareUseSapStm No 1.5
Form: void PCM_DeclareUseSapStm (void)
input: none
output: none
Function value: none
function: Extends the function so that it can be played back in Saturn PCM format.
Uses the Saturn PCM format in stream playback mode (stream system).
remarks: Required when playing Saturn PCM format in stream playback mode.
Call it immediately after the initialization function PCM_Init.
By calling this function, all PCM files to be played will be in Saturn PCM format.
SaturnPCM format, AIFF format, specified ADPCM format, and CD-ROM XA Audio format files cannot be used at the same time.

Steering wheel operation

List Title Function specifications Function Creating a handle (memory) Function Name PCM_CreateMemHandle No 2.1

Form

PcmHn PCM_CreateMemHandle (PcmCreatePara * para)

input

para: Creation parameter

output

none

Function value

Handle (null if not created)

function

Create a handle to play a file in memory.

remarks

You can create 32 handles at the same time.
Load the file into memory with the application program.
For the handle generated by PCM_CreateMemHandle, be sure to notify the file size by PCM_NotifyWriteSize.

List Title Function specifications Function Erase handle (memory) Function Name PCM_DestroyMemHandle No 2.2
Form: void PCM_DestroyMemHandle (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Erase the handle.
remarks: Once you erase a handle, it can no longer be used.

List Title Function specifications Function Creating a handle (file system) Function Name PCM_CreateGfsHandle No 2.3

Form

PcmHn PCM_CreateGfsHandle (PcmCreatePara * para, GfsHn gfs)

input

para	: Creation parameters
gfs	: File handle

output

none

Function value

Handle (null if not created)

function

Create a handle to play the file on the file system.

remarks

You can create 32 handles at the same time.
Obtain the file handle with the application program in advance.

List Title Function specifications Function Erase handle (file system) Function Name PCM_DestroyGfsHandle No 2.4
Form: void PCM_DestroyGfsHandle (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Erase the handle.
remarks: Once you erase a handle, it can no longer be used.

List Title Function specifications Function Creating a handle (stream system) Function Name PCM_CreateStmHandle No 2.5

Form

PcmHn PCM_CreateStmHandle (PcmCreatePara * para, StmHn stm)

input

para	: Creation parameters
stm	: Stream handle

output

none

Function value

Handle (null if not created)

function

Create a handle to play the file on the stream system.

remarks

You can create 32 handles at the same time.
Obtain the stream handle in the application program in advance.

List Title Function specifications Function Erase handle (stream system) Function Name PCM_DestroyStmHandle No 2.6
Form: void PCM_DestroyStmHandle (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Erase the handle.
remarks: Once you erase a handle, it can no longer be used.

List Title Function specifications Function Play task Function Name PCM_Task No 2.7 2.7
Form: void PCM_Task (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Reads files from CDs and transfers data to sound memory.; Specifying NULL for pcm executes the playback task for all playing handles.
remarks: Call this function periodically during playback.
V Call at a frequency equal to or higher than the frequency of blank interrupts (1 time / 16ms).

List Title Function specifications Function V blank IN processing function Function Name PCM_VblIn No 2.8
Form: void PCM_VblIn (void)
input: none
output: none
Function value: none
function: Manages playback time.
remarks: When using this library, be sure to call this function with V blank IN interrupt processing.

Playback control

List Title Function specifications Function Start playing Function Name PCM_Start No 3.1 3.1
Form: void PCM_Start (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Playback will start.
remarks: Playback can only be done once for the generated handle.
If you want to play the same file over and over again, generate a handle each time.

List Title Function specifications Function Stop playing Function Name PCM_Stop No 3.2
Form: void PCM_Stop (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Stop playback.

List Title Function specifications Function Pause Function Name PCM_Pause No 3.3

Form

void PCM_Pause (PcmHn pcm, PcmPauseCmd cmd)

input

pcm	:handle
cmd	: Pause control command

output

none

Function value

none

function

Pauses playback. Alternatively, cancel the pause.

List Title Function specifications Function Register the handle to play next Function Name PCM_EntryNext No 3.4 3.4
Form: void PCM_EntryNext (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Register the handle to play next.
remarks: If you register a handle with this function, the next handle will automatically start playing when the currently playing handle ends. If you specify NULL, the registration will be canceled.
The handle registered by this function also starts playing when forced switching is performed with PCM_Change.
Only one handle can be registered. When the handle is switched to the registered handle, it becomes unregistered and the next handle can be registered.

List Title Function specifications Function Forced switching of handle Function Name PCM_Change No 3.5
Form: void PCM_Change (void)
input: none
output: none
Function value: none
function: Suspends the currently playing handle and starts playing the handle registered with PCM_EntryNext.

List Title Function specifications Function Obtaining the switching state of the handle Function Name PCM_CheckChange No 3.6
Form: PcmChangeStatus PCM_CheckChange (void)
input: none
output: none
Function value: Forced switchability check value
function: Returns the possibility of switching when forced switching with PCM_Change.

List Title Function specifications Function Setting the number of loop playbacks Function Name PCM_SetLoop No 3.7

Form

void PCM_SetLoop (PcmHn pcm, Sint32 cnt_loop)

input

pcm	:handle
cnt_loop	:Number of loops

output

none

Function value

none

function

Specifies the number of loops for loop playback.
The default is once.

remarks

Loop playback can be used in memory playback mode (resident playback method) or file playback mode.
The memory playback mode and stream playback mode of the sequential supply method are not supported.
The specification in the function PCM_EntryNext and the function PCM_Change has priority over the specification of the loop playback count in this function. In other words, regardless of the number of loops specified, the handle switches to the next registered handle.

Information setting function

List Title Function specifications Function Setting the maximum number of transfer sectors Function Name PCM_SetLoadNum No 4.1

Form

void PCM_SetLoadNum (PcmHn pcm, Sint32 load_sct)

input

pcm	:handle
load_sct	: Maximum number of transfer sectors

output

none

Function value

none

function

Sets the maximum number of transfer sectors when transferring from the CD buffer to the library's ring buffer.
The default is 20 sectors.

remarks

Call this function before starting playback.

List Title Function specifications Function Playback PAN settings Function Name PCM_SetPan No 4.2

Form

void PCM_SetPan (PcmHn pcm, Sint32 pan)

input

pcm	:handle
pan	: PAN value (0-31)

output

none

Function value

none

function

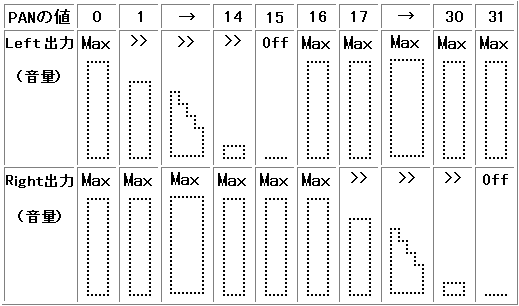

Specifies the sound PAN.
The default is 0.
The PAN setting is effective for monaural playback. Ignored for stereo playback.

List Title Function specifications Function Playback volume setting Function Name PCM_SetVolume No 4.3

Form

void PCM_SetVolume (PcmHn pcm, Sint32 volume)

input

pcm	:handle
volume	: Volume (0-7)

output

none

Function value

none

function

Specify the volume. (0 outputs nothing, 7 is maximum volume) The default is 7.

List Title Function specifications Function Change PCM playback parameters Function Name PCM_ChangePcmPara No 4.4
Form: void PCM_ChangePcmPara (PcmHn pcm)
input: pcm: handle
output: none
Function value: none
function: Change the PCM playback parameters during playback for the sound driver.
remarks: By calling this function after setting the volume and pan, the actual change processing is performed.

List Title Function specifications Function PCM stream playback number setting Function Name PCM_SetPcmStreamNo No 4.5

Form

void PCM_SetPcmStreamNo (PcmHn pcm, Sint32 stream_no)

input

pcm	:handle
stream_no	: PCM stream playback number (0-7)

output

none

Function value

none

function

Set the PCM stream playback number to be set in the sound driver.
The default is 1.

remarks

For more information on PCM stream playback numbers, see the Sega Saturn Sound Driver 2.10 Programmer's Guide .
When performing multi-playback, use different stream playback numbers. Call this function before starting playback.

List Title Function specifications Function Work setting for pause processing Function Name PCM_SetPauseWork No 4.6

Form

void PCM_SetPauseWork (Sint32 * addr, Sint32 size)

input

addr	: Work address
size	: Work size

output

none

Function value

none

function

Sets the work area used for pause-on processing.

remarks

To use the pause function, it is necessary to specify the work for pause processing by PCM_SetPauseWork in advance. This work does not need to be prepared for each handle. Since this work is a work area that is temporarily used during the pause-on process, you may reserve the area immediately before the pause-on process and release the area immediately after that.

Processing example

#defile PAUSE_WORK_SIZE (4096L * 2)
pause_work_addr = malloc (PAUSE_WORK_SIZE);
PCM_SetPauseWork (pause_work_addr, PAUSE_WORK_SIZE);
PCM_Pause (pcm, PCM_PAUSE_ON_AT_ONCE);
free (pause_work_addr);

List Title Function specifications Function Data transfer method setting (CD block → ring buffer) Function Name PCM_SetTrModeCd No 4.7

Form

void PCM_SetTrModeCd (PcmHn pcm, PcmTrMode mode)

input

pcm	:handle
mode	: Data transfer method

output

none

Function value

none

function

Set the data transfer method from the CD block to the ring buffer.
The default is CPU DMA.
You can specify either program transfer, CPU DMA, or SCU DMA.

caution

Call PCM_SetTrModeCd after creating the handle and before calling the task function for the first time.

List Title Function specifications Function Playback information settings Function Name PCM_SetInfo No 4.8

Form

void PCM_SetInfo (PcmHn pcm, PcmInfo * info)

input

pcm	:handle
info info	: Playback information

output

none

Function value

none

function

Set the information for PCM playback.

remarks

Normally, we don't use this function because we get the information for playback from the file header. Currently, it is only needed for CD-ROM XA Audio playback.

Example of use

For CD-ROM XA Audio playback, set the playback information as follows.

PcmInfo info;
PCM_INFO_FILE_TYPE (& info) = PCM_FILE_TYPE_NO_HEADER; / * No header * /
PCM_INFO_DATA_TYPE (& info) = PCM_DATA_TYPE_ADPCM_SCT; / * XA Audio sector processing * /
PCM_SetInfo (pcm, & info);

caution

Call PCM_SetInfo after creating the handle and before calling the task function for the first time.

List Title Function specifications Function Setting the processing upper limit value per task Function Name PCM_Set1TaskSample No 4.9

Form

void PCM_Set1TaskSample (PcmHn pcm, Sint32 sample)

input

pcm	:handle
sample	: Number of samples (sample / 1ch)

output

none

Function value

none

function

Set the upper limit of the amount processed by one task function (PCM_Task).
This can stabilize the load of the task function.
The default value is 1024 [sample / ch]

remarks

It can be changed during playback, but it is desirable to set it before the start of playback in order to stabilize the task load. If the value to be set is too small, it will not be possible to play normally, so consider the frequency of calling tasks and the playback frequency, and set it to a value with a margin.

List Title Function specifications Function Playback start trigger size setting Function Name PCM_SetStartTrgSize No 4.10

Form

void PCM_SetStartTrgSize (PcmHn pcm, Sint32 size)

input

pcm	:handle
size	: Data size (byte)

output

none

Function value

none

function

Playback starts when data of size or larger is supplied.
The default value is 0 [byte]

remarks

Set before starting playback. By setting the playback start condition, playback safety is improved even if the data supply becomes unstable after the playback starts.

List Title Function specifications Function Playback start trigger sample setting Function Name PCM_SetStartTrgSample No 4.11

Form

input

pcm	:handle
sample	: Number of samples (sample / 1ch)

output

none

Function value

none

function

Playback starts when there is more than sample supply.
The default value is 4096 [sample / ch]

remarks

Set before starting playback. By setting the playback start condition, playback safety is improved even if the data supply becomes unstable after the playback starts.

List Title Function specifications Function Playback stop trigger sample setting Function Name PCM_SetStopTrgSample No 4.12

Form

void PCM_SetStopTrgSample (PcmHn pcm, Sint32 sample)

input

pcm	:handle
sample	: Number of samples (sample / 1ch)

output

none

Function value

none

function

The remaining amount below the sample is the condition for stopping playback.
The default value is 2048 [sample / ch]

remarks

Set before starting playback. If the frequency of task calls is low, noise may occur when the task is stopped. If you cannot increase the frequency, you can avoid this by setting it higher than the default value.

Information acquisition function

List Title Function specifications Function Get playback time Function Name PCM_GetTime No 5.1
Form: Sint32 PCM_GetTime (PcmHn pcm)
input: pcm: handle
output: none
Function value: Current time
function: Get the current time.
(Number of samples played from the beginning of this file to the present)

List Title Function specifications Function Get playback status Function Name PCM_GetPlayStatus No 5.2.
Form: PcmPlayStatus PCM_GetPlayStatus (PcmHn pcm)
input: pcm: handle
output: none
Function value: Playback status
function: Returns the current playback status.

Buffer control

List Title Function specifications Function Get write buffer Function Name PCM_GetWriteBuf No 6.1

Form

Uint32 * PCM_GetWriteBuf (PcmHn pcm, Sint32 * free_size, Sint32 * free_total)

input

pcm: handle

output

free_size	: Number of bytes in continuous writable area
free_total	: Total number of bytes in writable area including discontinuous area

Function value

Start address of continuously writable area (NULL if not writable)

function

Gets the buffer address to write to and the number of bytes that can be written.

remarks

It is used when you want to supply data to the ring buffer independently.

List Title Function specifications Function Write size notification Function Name PCM_NotifyWriteSize No 6.2.

Form

void PCM_NotifyWriteSize (PcmHn pcm, Sint32 write_size)

input

pcm	:handle
write_size	: Number of bytes written

output

none

Function value

none

function

Notifies the library of the number of bytes of data actually supplied to the ring buffer.

remarks

It is used when you want to supply data to the ring buffer independently.
When playing a file in memory, the buffer size (file size) is notified.

List Title Function specifications Function File preload Function Name PCM_PreloadFile No 6.3

Form

void PCM_PreloadFile (PcmHn pcm, Sint32 size)

input

pcm	: Handle
size	: Number of bytes to read

output

none

Function value

Number of bytes actually read

function

Before starting file playback, read the specified size of data into the ring buffer.

remarks

The number of bytes to be read is in sector units (a multiple of 2048).

Error control

List Title Function specifications Function Get error information Function Name PCM_GetErr No 7.1
Form: PcmErrCode PCM_GetErr (void)
input: none
output: none
Function value: Error code
function: Returns the most recently generated error code.

List Title Function specifications Function Error function registration Function Name PCM_SetErrFunc No 7.2

Form

void PRM_SetErrFunc (PcmErrFunc func, void * obj)

input

func	: Function to call when an error occurs
obj	: Registered object

output

none

Function value

none

function

Set the function to be called when an error occurs. The registration object is passed to the first argument of the registration function.

▲ Back ｜ ■

★ PROGRAMMER'S GUIDE ★ PCM / ADPCM playback library

6.2 Function details

Initialization and termination processing

Function specifications

Initialize

PCM_Init

1.1

Function specifications

End processing

PCM_Finish

1.2

Function specifications

Declaration of use of ADPCM

PCM_DeclareUseAdpcm

1.3 1.3

Function specifications

Saturn PCM usage declaration (file system)

PCM_DeclareUseSapGfs

1.4

Function specifications

Saturn PCM usage declaration (stream system)

PCM_DeclareUseSapStm

1.5

Steering wheel operation

Function specifications

Creating a handle (memory)

PCM_CreateMemHandle

2.1

Function specifications

Erase handle (memory)

PCM_DestroyMemHandle

2.2

Function specifications

Creating a handle (file system)

PCM_CreateGfsHandle

2.3

Function specifications

Erase handle (file system)

PCM_DestroyGfsHandle

2.4

Function specifications

Creating a handle (stream system)

PCM_CreateStmHandle

2.5

Function specifications

Erase handle (stream system)

PCM_DestroyStmHandle

2.6

Function specifications

Play task

PCM_Task

2.7 2.7

Function specifications

V blank IN processing function

PCM_VblIn

2.8

Playback control

Function specifications

Start playing

PCM_Start

3.1 3.1

Function specifications

Stop playing

PCM_Stop

3.2

Function specifications

Pause

PCM_Pause

3.3

Function specifications

Register the handle to play next

PCM_EntryNext

3.4 3.4

Function specifications

Forced switching of handle

PCM_Change

3.5

Function specifications

Obtaining the switching state of the handle

PCM_CheckChange

3.6
