1. Overview

■ System overview

● Required hardware

name	Model	Contents
Development host machine	Macintosh	Macintosh II series and above SCSI-equipped models OS: KanjiTalk7 or System7 or above RAM: 16MB or more HDD: 300MB or more 1GB or more when recording HD
Saturn target box		Can operate with a single sound board (without main board)
MIDI instrument	MIDI keyboard and others	Models capable of MIDI output Used for tone development, composition, and sound effect creation
Audio equipment	CD player DAT others	* Models capable of digital output Used for waveform editing and HD recording
MIDI interface	Studio5 others	MIDI interface for Macintosh

● Required software

system	software	Providing destination	Contents
Tone development tool	Waveform editor Tone editor DSP linker	SEGA Commercial item SEGA SEGA	Waveform editing, HD recording Can also be used with commercially available waveform editing tools (those that support AIFF formats such as Alchmy and SDII) FM / PCM tone development DSP program development
Composition tool	MIDI sequencer	Commercial item	Digital Performer (Mark of the Unicorn) Studio Vision (Opcode Systems) Cubase Audio (Steinberg), etc.
Sound development support tool	Master system	SEGA	Map Tool Sound Simulator Optimized Linker

The following tools are for creating and modifying programs such as sound drivers, and are not necessary for developing sound (songs, sound effects) data.

system	software	Providing destination	Contents
Program development tools	Text editor Assembler Linker Debugger	SEGA Commercial item SEGA SEGA SEGA	Can be used with commercially available word processors and text editors for program creation, data creation, etc. (supports the TEXT format) Macro assembler for 68000 Linker for 68000 Remote debugger for 68000

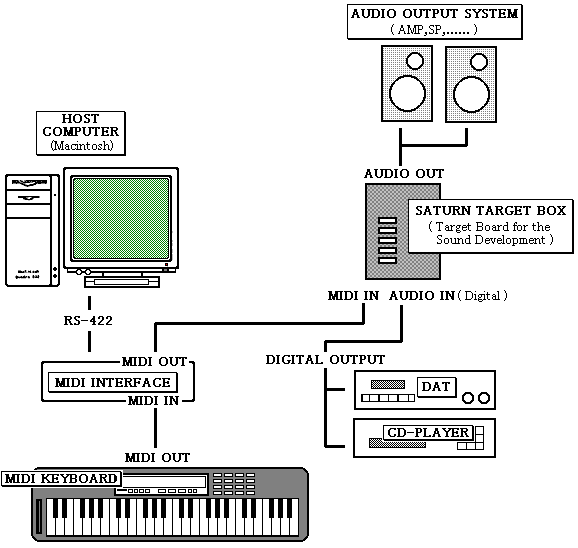

● Hardware setting diagram
