■ Overview

The multi-controller is a controller that enables digital cross + 6 buttons + 4-axis analog operation in its own mode while maintaining compatibility with the conventional Saturn standard pad.
The software released in general can also be operated as a standard pad by switching modes. In addition, various functions can be added by replacing the plug unit with the expansion socket of the controller. (Currently, the expansion unit is undecided)

This text describes the data format when the normal unit is attached to the expansion unit.

■ Digital / analog common specifications

● When the power is turned on

The position of the analog key when the power is turned on is corrected to the center value (128,128), and the position of the trigger is corrected to 0 value.

● Mode switch

The mode switch switches between digital and analog and has the following functions.

Data format switching to maintain compatibility with Saturn standard pads.

Center position (128,128) correction of analog value and 0 (zero) value correction of L / R trigger.

● Corresponding peripheral character code: Multi-controller = "E"

This is the character code described in SYSTEMID in the application CD-ROM.

reference:

"Programmer's Guide / DISC Format Standard Specifications"
Boot system / supported peripherals

■ Digital mode

Digital mode data format

	bit7	bit6	bit5	bit4	bit3	bit2	bit1	bit0
Peripheral ID	0	0	0	0	0	0	1	0
1st data	Right	Left	Down	Up	Start	ATRG	CTRG	BTRG
2nd data	RTRG	XTRG	YTRG	ZTRG	LTRG	1	1	1

● Saturn Peripheral ID = 02H

Saturn peripheral type ...	0H (digital device)
Data size··········	2H (2 bytes)

● Explanation of each data

Right, Left, Down, Up ...	When you enter the key with the cross key, it becomes "0".
Start, ATRG, CTRG, BTRG ...	It becomes "0" when the XTRG, YTRG, ZTRG buttons are pressed.
RTRG, LTRG ...	It will be "0" when the digital data is returned and the button is pressed due to the analog threshold value.

Note: No analog value is output in this putt mode.

The lower 3 bits (bit2 to 0) of 2nd DATA is [111b], but please do not use it to maintain compatibility with other peripherals.

Related information:

Developer's Information STN-42 " Notes on using SMPC "

■ Analog mode

Analog mode data format

	bit7	bit6	bit5	bit4	bit3	bit2	bit1	bit0
Peripheral ID	0	0	0	1	0	1	1	0
1st data	Right	Left	Down	Up	Start	ATRG	CTRG	BTRG
2nd data	RTRG	XTRG	YTRG	ZTRG	LTRG	1	1	1
3rd data	AX7	AX6	AX5	AX4	AX3	AX2	AX1	AX0
4th data	AY7	AY6	AY5	AY4	AY3	AY2	AY1	AY0
5th data	AR7	AR6	AR5	AR4	AR3	AR2	AR1	AR0
6th data	AL7	AL6	AL5	AL4	AL3	AL2	AL1	AL0

● Saturn Peripheral ID = 16H

Saturn peripheral type ...	1H (Analog device)
Data size···········	6H (6 bytes)

● Explanation of each data

◆ Digital department

Right, Left, Down, Up ...	When you enter the key with the cross key, it becomes "0".
Start, ATRG, CTRG, BTRG ... XTRG, YTRG, ZTRG	It becomes "0" when the button is pressed.
RTRG, LTRG ...	It will be "0" when the digital data is returned and the button is pressed due to the analog threshold value.

◆ Analog part

AX7 ~ AX0, AY7 ~ AY0 ・ ・ ・ ・ ・ ・ ・ ・	Outputs the absolute value of the unsigned A / D converter output. Notes
AL7 ~ AL0, AR7 ~ AR0 ・ ・ ・ ・ ・ ・ ・ ・	Outputs the absolute value of the unsigned A / D converter output

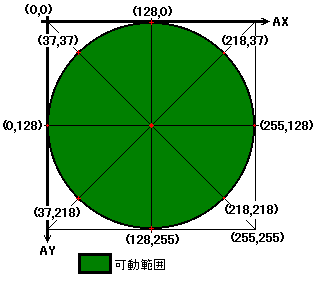

<Analog pad output data>

● Notes

The locus when the AX, AY keys are fully defeated is a concentric circle with a radius of 128 centered on AX, AY = (80H, 80H). The value (0) is not output. In addition, each coordinate in the figure shows the main position, but the actual input value can indicate any position in the circumference.

<Output data of L / R button>

The lower 3 bits (bit2 to 0) of 2nd DATA is [111b], but please do not use it to maintain compatibility with other peripherals.

Related information:

Developer's Information STN-42 " Notes on using SMPC "

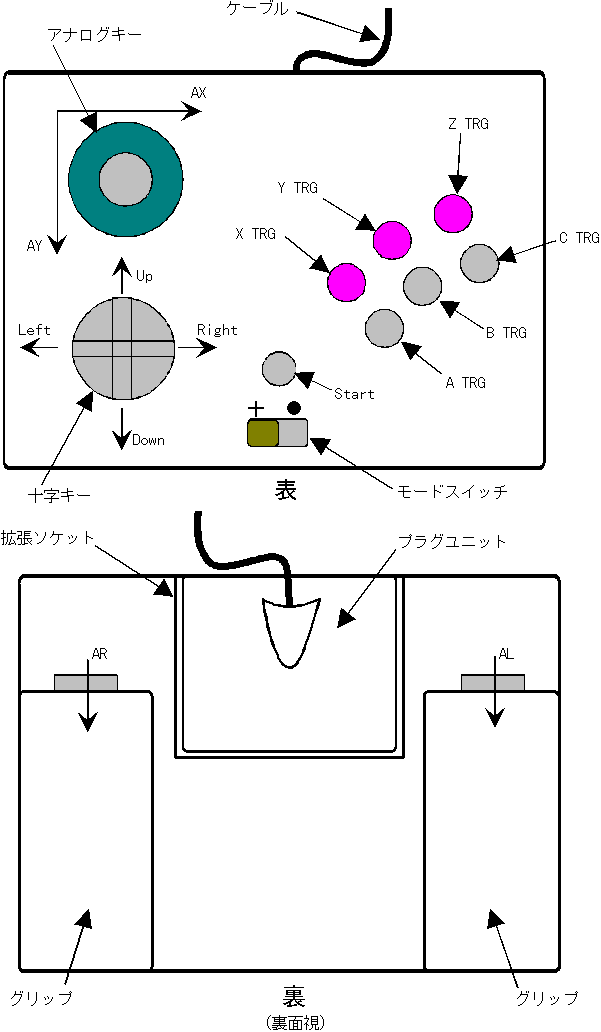

■ Button layout (schematic)
